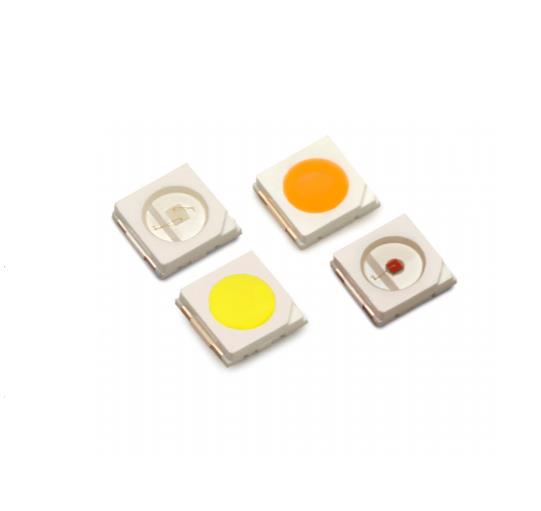

LUXEON 3535L Color Line

The LUXEON 3535L Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 3535L Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.

Product performance for LUXEON 3535L Color Line at 100mA,T_j=25°C.
Note: Royal Blue measured in peak wavelength and radiometric power.

COLOR	DOMINANT OR PEAK WAVELENGTH (nm)		LUMINOUS FLUX (lm) OR RADIOMETRIC POWER (mW)		PART NUMBER
	MINIMUM	MAXIMUM	MINIMUM	TYPICAL
Red	620	630	10.0	13.5	L135-R625003500000
Red-Orange	610	620	13.0	15.5	L135-O615003500000
PC Amber	-	-	24.0	35.0	L135-A589003500000
Lime	-	-	44.0	56.0	L135-L567003500000
Green	520	540	21.0	35.0	L135-G525003500000
Blue	469	480	8.2	11.0	L135-B475003500000
Royal Blue	440	455	130	155	L135-U450003500000
