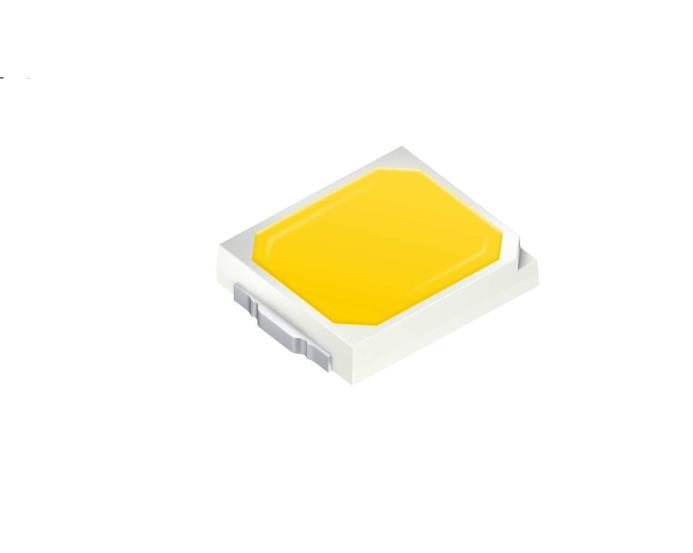

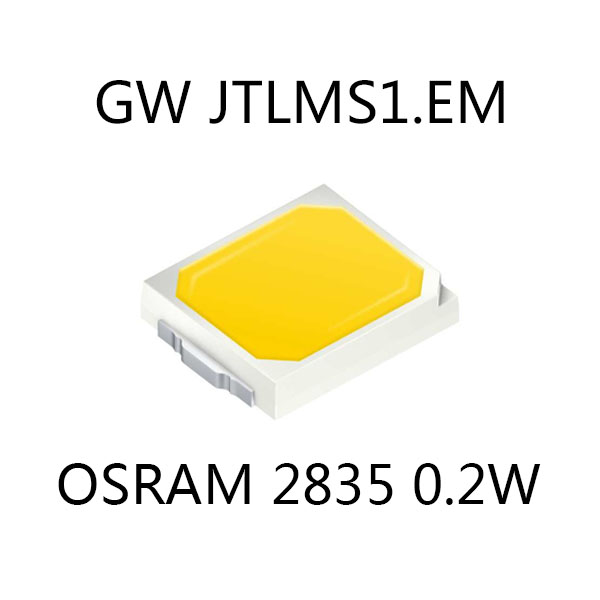

DURIS E2835系列料号如下： GW JTLMS1.EM 0.2W 3V 65MA CRI80 90显可提供 GW JTLPS1.EM 0.5W 3V 150MA CRI80 90显可提供 GW JTLRS1.EM 1W 9V 100MA CRI80 90显可提供 产品特点： • 极高性价比封装，适用于线条灯、点光源、面板灯、灯管、球泡、投光灯等 • 显色指数CRI80下全色温2200K-6500K可选 • 色温4000K下光效高达150lm/W typ • 白色SMT包装，彩色扩散硅树脂50%IV视角：120° • 105℃下寿命长达54000小时以上 DURIS® E 2835, 0.2W
| Type | min CRI | CCT range
(K) |
Binning
(mA) |
typ. Vf
(V) |
typ. Power
(W) |
CCT
(K) |
typ. Flux
(lm) |
typ. Eff
(lm/W) |
|
| 3V 0.2W | GW JTLMS1.EM | 80 | 2200 – 6500 | 60 | 3.00 | 0.18 | 4000 | 28 | 155 |
| 3V 0.2W | GW JTLMS1.CM | 90 | 2200 - 6500 | 60 | 3.00 | 0.18 | 4000 | 23.7 | 131 |
| 3V 0.2W | GW JTLMSX.EM LE | 80 | 2200 – 6500 | 60 | 3.15 | 0.18 | 4000 | 25 | 130 |

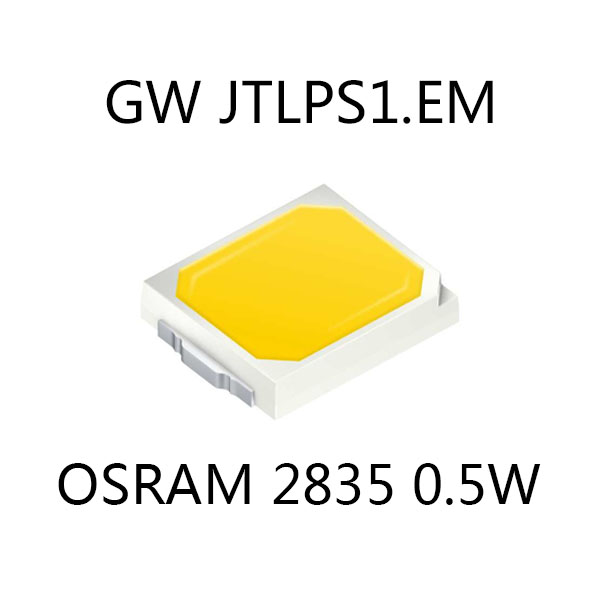

DURIS® E 2835, 0.5W
| Type | min CRI | CCT range
(K) |
Binning
(mA) |
typ. Vf
(V) |
typ. Power
(W) |
CCT
(K) |
typ. Flux
(lm) |
typ. Eff
(lm/W) |
|
| 3V 0.5W | GW JTLPS1.EM Std | 80 | 2200 – 6500 | 150 | 3.05 | 0.46 | 4000 | 71 | 175 @ 65 mA |
| 3V 0.5W | GW JTLPS1.EM PLUS | 80 | 2200 – 6500 | 150 | 3.04 | 0.46 | 4000 | 75 | 190 @ 65 mA |
| 3V 0.5W | GW JTLPS1.EM
(Gen2) |
80 | 2200 – 6500 | 150 | 2.88 | 0.43 | 4000 | 77.5 | 200 @ 65 mA |
| 3V 0.5W | GW JTLPS1.CM | 90 | 2200 – 6500 | 150 | 3.05 | 0.46 | 4000 | 59.9 | 145 @ 65 mA |
| 3V 0.5W | GW JTLPS1.CM PLUS | 90 | 2200 – 6500 | 150 | 3.04 | 0.46 | 4000 | 62 | 155 @ 65 mA |

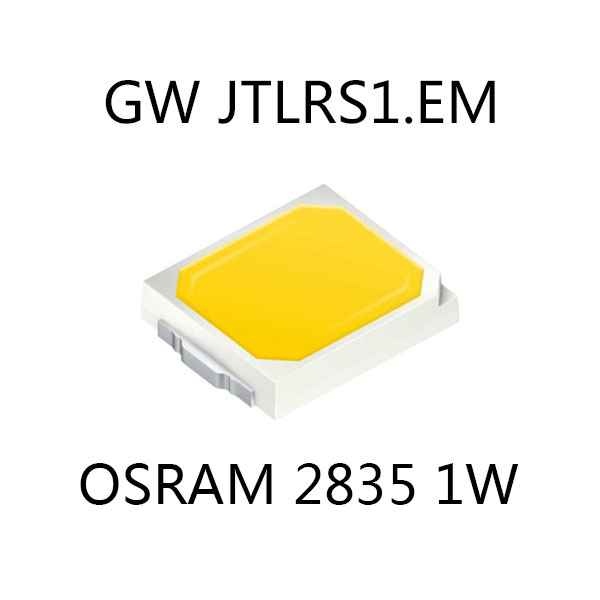

DURIS® E 2835, 1W
| Type | min CRI | CCT range
(K) |
Binning
(mA) |
typ. Vf
(V) |
typ. Power
(W) |
CCT
(K) |
typ. Flux
(lm) |
typ. Eff
(lm/W) |
|
| 9V 1W | GW JTLRS1.EM Eco | 80 | 2200 – 6500 | 100 | 9.40 | 0.96 | 2700 | 114 | 120 |
| 9V 1W | GW JTLRS1.EM Std | 80 | 2200 – 6500 | 100 | 9.40 | 0.96 | 2700 | 124 | 130 |
| 9V 1W | GW JTLRS1.CM | 90 | 2200 – 6500 | 100 | 9.40 | 0.96 | 2700 | 107 | 114 |
| 9V 1W | GW JTLRS1.CM PLUS | 90 | 2200 – 6500 | 100 | 9.10 | 0.96 | 2700 | 113 | 124 |
| 6V 1W | GW JTLQS1.EM | 80 | 2200 – 6500 | 150 | 6.15 | 0.92 | 4000 | 148 | 160 |
